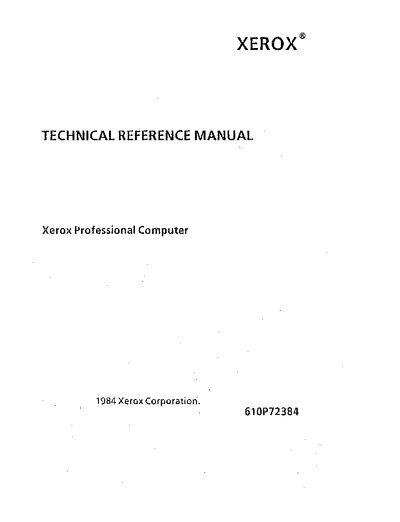

Xerox 820-11 and 16/8 Professional Computer Technical Reference Manual

This is a technical reference manual for Xerox Professional Computer

Brand: Xerox
Document type: Service Manual
Language: English
Pages: 340
File format: PDF
File size: 14.3 MB
Published: 02 November, 2023
Updated: 02 November, 2023
MD5 checksum: 3283A2EDB5F12865B84DAC707D04C2D3
PDF: Xerox 820-11 and 16/8 Professional Computer Technical Reference Manual PDF

About this manual

This Technical Reference Manual offers programmers and engineers comprehensive information on the Xerox 820-11 and 16/8 Professional Computers, covering hardware architecture, software environments, and peripheral interfaces. It includes warnings, FCC compliance details, and a full table of contents for quick navigation.

The document contains sections on hardware description, functional operation, system bus expansion, connector pinouts, dimensions, electrical requirements, operating environment, disk drive specifications, display specifications, and programming considerations, along with extensive schematics and appendices.

What's inside

Introduction
Hardware Description
Functional Description
Hardware Interface
Operating Systems
Dimensions
Electrical Requirements
Operating Environment
Disk Drive Storage
Display Specification

Specifications

Dimensions (Height x Depth x Width)	12.20" x 14.75" x 15.00"
Voltage requirement	115 VAC, 60 Hz
Operating temperature range	50–90 °F
Floppy disk drive size	8 inch

Frequently asked questions

What FCC class does the Xerox Professional Computer meet?

It is certified as a Class B computing device.

What voltage and frequency does the Xerox 820-11/16-8 require?

It requires 115 VAC at 60 Hz.

What temperature range can the Xerox Professional Computer operate in?

It operates between 50 °F and 90 °F.
