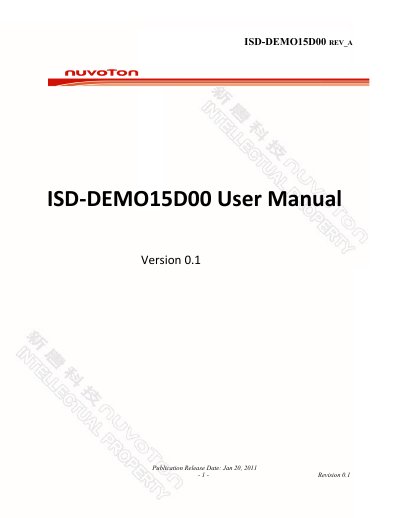

Nuvoton ISD-DEMO15D00 Evaluation Board User Manual

This manual describes the usage of ISD-DEMO15D00, including device configuration and operation instructions.

Brand: Nuvoton
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 550 KB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: EAEF711D1F11D600177E45DA505D08B4
PDF: Nuvoton ISD-DEMO15D00 Evaluation Board User Manual PDF

About this manual

The document provides instructions for using the ISD-DEMO15D00 Rev_A evaluation board in conjunction with the ISD-ES_MINI_USB dongle. It details the system requirements, which include a PC running Windows Vista, XP, NT, or 2000, and explains how to obtain software via Nuvoton's website.

What's inside

Overview
Introduction
Board Configuration
Jumper settings
Standalone Operation
Board Schematic

Frequently asked questions

What hardware components are included in the complete evaluation kit for the ISD-DEMO15D00?

The kit includes the ISD-DEMO15D00 board and the ISD-ES_USB_MINI board.

Which operating systems are supported for running the VPE application?

The application runs on Windows Vista, XP, NT, or 2000.

How can a user enable the on-board audio amplifier ISD8101?

Install a jumper at J5 to connect AMP_EN with VCCA.
