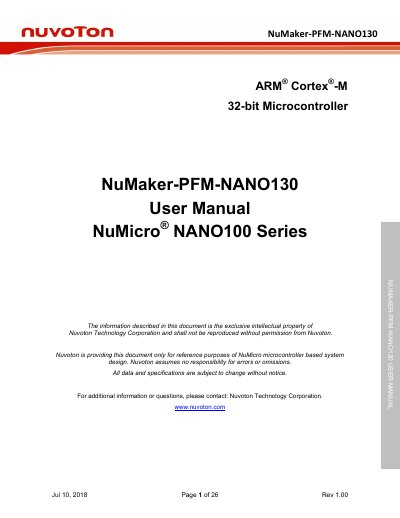

NuMaker-PFM-NANO130 is a development board based on NANO130 series MCU from Nuvoton Technology Corporation, which has Arduino UNO compatible interface.
The NuMaker-PFM-NANO130 is a development board based on the NANO100 series microcontroller (specifically the NANO130KE3BN) featuring an ARM Cortex-M0 core. It is designed to support the ARM mbed IoT Device Platform and includes an integrated Nu-Link-Me ICE Bridge for drag-and-drop programming via USB.
The board features an Arduino UNO compatible interface, allowing users to connect various Arduino modules or kits directly. Key hardware components include extended interface connectors (J1-J4), a USB 2.0 Full-Speed device connector, push-buttons for reset and user-defined functions, and LEDs for power and I/O status indication.
| Microcontroller Core | ARM Cortex-M0 |
|---|---|
| Operating Frequency | up to 42 MHz |
| Flash Memory | 128 Kbytes |
| SRAM | 16 Kbytes |
| ADC Resolution | 12-bit SAR ADC up to 2Msps conversion rate |
| DAC Output | 12-bit DAC monotonic output with 400K conversion rate |
| USB Interface | USB 2.0 Full-Speed Device |
The board uses the NANO130KE3BN, which features an ARM Cortex-M0 core.
Yes, it provides an Arduino UNO compatible interface for connecting modules.
It uses an on-board Nu-Link-Me ICE Bridge for drag-and-drop programming via USB.
