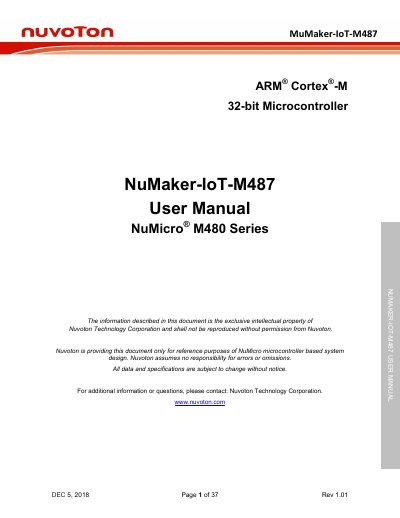

Nuvoton NuMaker-IoT-M487 User Manual

NuMaker-IoT-M487 is a development board based on ARM® Cortex®-M 32-bit microcontroller for developing various IoT applications.

Brand: Nuvoton
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 37
File format: PDF
File size: 1.7 MB
Published: 16 October, 2023
Updated: 16 October, 2023
Model: M487
MD5 checksum: 03B4AD3C9533DEC1E469A8F7A6E76B9A
PDF: Nuvoton NuMaker-IoT-M487 User Manual PDF

About this manual

The NuMaker-IoT-M487 is a development board utilizing the Nuvoton M487JIDAE microcontroller. It features an Arm Cortex-M4 core with DSP extensions and FPU, designed to facilitate rapid development of Internet of Things (IoT) applications. The board includes built-in connectivity options such as Wi-Fi and Ethernet, along with various expansion interfaces.

What's inside

Overview
M487 Series MCU Features
NuMaker-IoT-M487 Board Features
Introduction to Arm Mbed
Board Overview View
System Configuration
Schematics Interconnection
Wi-Fi Module Interface
LEDs, Buttons, I/Os and NuMaker Brick Interface

Specifications

MCU Core	Arm Cortex-M4 with DSP extensions and FPU
Operating Voltage	1.8 V to 3.6 V
Flash Memory	512 Kbytes
SRAM	160 Kbytes
Clock Speed	up to 192 MHz

Frequently asked questions

Does the board support Arduino UNO?

Yes, it provides an Arduino UNO compatible interface for expansion.

What sensors are integrated on the board?

It includes a BOSCH 9-Axis Sensor (BMX055).
