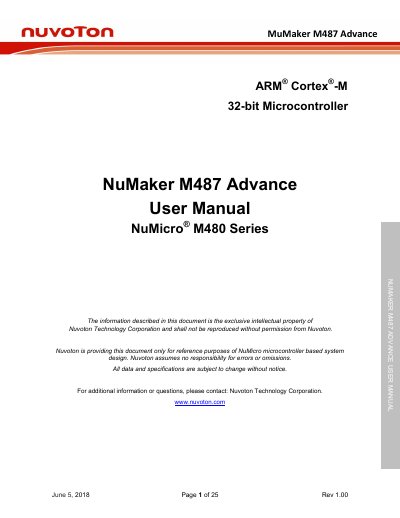

NuMaker M487 Advance User Manual introduces M487JIDAE chip features and NuMaker-PFM-M487 board hardware structure
This document serves as a user manual for the NuMaker M487 Advance board, a daughter board designed to be combined with the NuMaker-PFM-M487 development board. It provides a brief introduction to the target M487JIDAE microcontroller and lists its key features, including an ARM Cortex-M4 core, various peripherals, and interface capabilities.
The manual details the physical overview of the NuMaker M487 Advance board, identifying components such as the QVGA TFT LCD, SRAM, I2C EEPROM, and motion tracking device. It also explains the rear view connectors and provides specific circuit schematics for the Mikro Bus, CAN, and RS485 interfaces.
| Target Chip | M487JIDAE |
|---|---|
| Core | ARM Cortex-M4 |
| Clock Speed | up to 192 MHz |
| Flash Memory | 512 Kbytes |
| SRAM | 160 Kbytes |
| Operating Voltage | 1.8 V to 3.6 V |
| Package | LQFP144 |
| LCD Module | QVGA TFT LCM with Touch |
It is a daughter board that needs to be combined with the NuMaker-PFM-M487 development board to function.
The board is based on the M487JIDAE microcontroller, which features an ARM Cortex-M4 core.
The board includes interfaces for CAN, RS485, Mikro Bus, I2C, SPI, UART, and USB.
