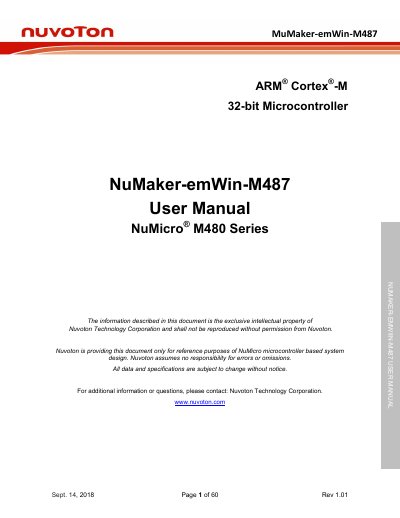

Nuvoton NuMaker emWin M487 User Manual
This user manual provides a fast introduction to the NuMaker emWin M487 board (NK-BEDM487D), which consists of a NuMaker -PFM -M487 main board and a NuMaker M487 Advance daughter board. The board is designed for developing system applications, specifically for NuMaker emWin GUI display and HMI functions on a TFT LCD screen with touch input.
The document details the target chip, the M487JIDAE microcontroller, and its features, including an ARM Cortex-M4 core running up to 192 MHz, 512 Kbytes Flash, and various peripherals like Ethernet, USB, and audio codecs. It also covers the board's physical layout, pin assignments, and circuit schematics for both the main board and the advance daughter board. This manual is written in Chinese.
Nuvoton M487 specifications
| MCU Core | ARM Cortex-M4 |
|---|---|
| Flash Memory | 512 Kbytes |
| SRAM | 160 Kbytes |
| Operating Voltage | 1.8 V to 3.6 V |
| Package | LQFP144 |
| Ethernet | Ethernet MAC |
| USB | USB 2.0 High-Speed OTG / Host / Device |
All Nuvoton M487 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the part number of the NuMaker emWin M487 board?
The part number is NK-BEDM487D.
What microcontroller is used in the NuMaker emWin M487 board?
The board uses the M487JIDAE microcontroller.
Does the board support Arduino UNO?
Yes, it provides an Arduino UNO compatible interface for expansion.
What sensors are integrated on the board?
It includes a BOSCH 9-Axis Sensor (BMX055).
What is the function of the LED and GPIO connector?
The LED shows the On/Off status of the AC and USB sockets, and the two GPIO connectors allow users to extend the functions on the M487 Smart Power board.
What components are included inside the M487 Power Station case?
The case contains a NuMaker-emWin-M487D board with a TFT LCD panel, a M487 Smart Power board, a Wi-Fi module board, an AC-to-DC5V adaptor, three AC sockets, three USB sockets, and some LED components.
