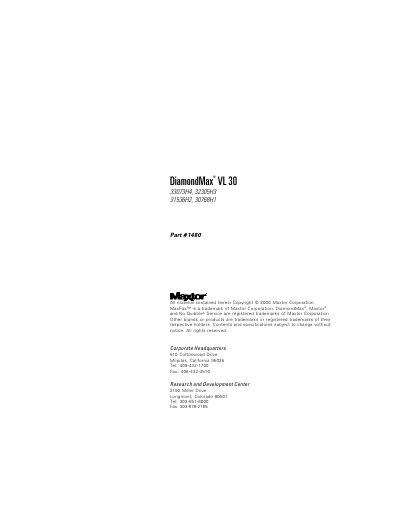

Maxtor DiamondMax VL 30 is a hard disk drive produced by Maxtor Corporation. This manual provides technical information on the installation and use of this hard drive.
The Maxtor DiamondMax VL 30 is a high-quality computer storage product designed for entry-level systems and consumer electronics applications. This manual serves as a reference guide for OEM engineers and systems integrators, covering technical descriptions, specifications, handling precautions, and installation procedures.
Key topics include the AT interface description, host software interface details such as task file registers and command sets (including S.M.A.R.T.), and specific instructions for configuring drive jumpers and physical mounting. The document also outlines service policies and environmental compliance standards.
You must take electro-static discharge (ESD) precautions, including personnel and equipment grounding, and allow the drive to reach room temperature before removing it from its packing material.
If a drive is removed from the Maxtor shipping container, it must be immediately secured through its mounting holes within a chassis or stored on a padded, grounded, antistatic surface.
You must never switch DC power onto the drive by plugging an electrically live DC source cable into the drive's connector or by connecting a live bus to the drive's interface connector.
