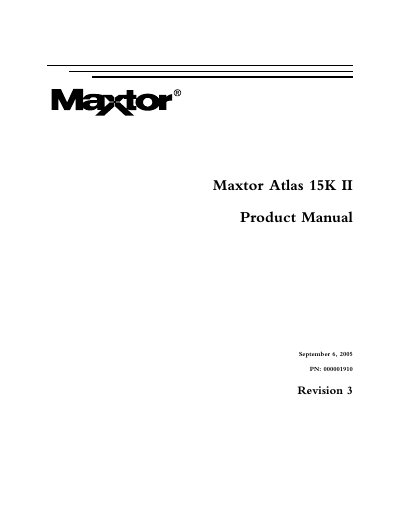

Maxtor Atlas 15K II Hard Disk Drive User Manual

About this manual

The Maxtor Atlas 15K II is a precision hard disk drive designed for OEM engineers and systems integrators. This document serves as a technical guide covering safety precautions, handling procedures, and electrostatic discharge (ESD) protection required before unpacking or handling the drive.

The manual details hardware requirements, installation instructions including space needs and mounting orientation, and specific configuration options such as jumper settings for write protection, spin delays, and single-ended operation. It also describes interface connectors for 68-pin Wide SCSI and 80-pin SCA-2 versions.

What's inside

• General Description
• Safety Precautions
• Electrostatic Discharge Protection
• Hardware Options
• Interface Connectors
• Drive Mounting
• Specifications Summary
• Data Transfer Rates
• Power Sequencing
• SCSI Command Descriptions

Specifications

Frequently asked questions

Who is the intended audience for this manual?

This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of Maxtor hard drives.

Where should drive repair be performed?

Drive repair should only be performed at an authorized repair center.

What precautions must be taken before handling a drive?

Before unpacking or handling, one must take proper electro-static discharge (ESD) precautions, including personnel and equipment grounding.
