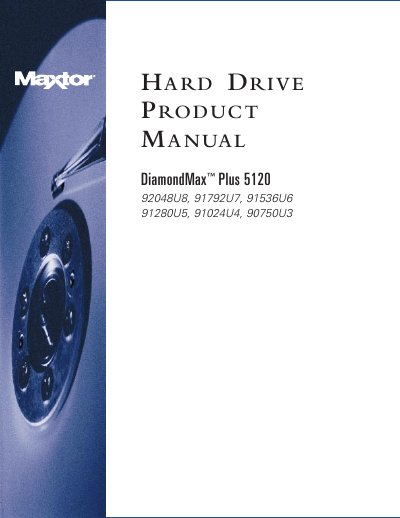

Maxtor DiamondMax Plus 5120 Hard Drive Installation and Use Manual

About this manual

The document serves as a product manual for the Maxtor DiamondMax Plus 5120 series of AT hard disk drives. It is intended primarily for OEM engineers and systems integrators who require technical details on installation, configuration, and usage rather than end-user operating instructions.

The guide covers essential topics including drive identification, physical installation precautions such as electrostatic discharge (ESD) handling, system hardware requirements, BIOS setup parameters, and detailed descriptions of the AT interface commands. It also includes specific product specifications regarding performance, power consumption, and environmental limits.

What's inside

• Introduction
• Product Description
• Product Specifications
• Handling and Installation
• AT Interface Description
• Host Software Interface
• Interface Commands

Specifications

Frequently asked questions

Who is this manual intended for?

This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of DiamondMax hard drives.

Where can repair information be found?

Drive repair should only be performed at an authorized repair center by contacting Maxtor Customer Service.
