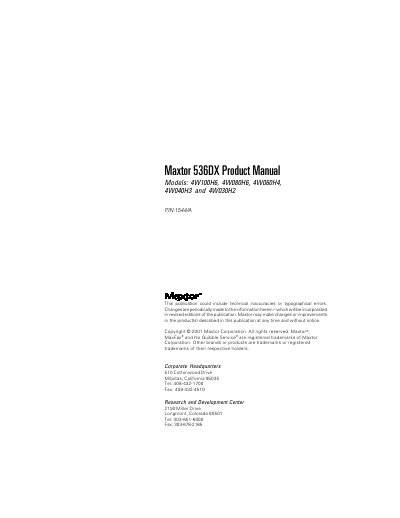

The Maxtor 536DX Product Manual provides technical information for OEM engineers and systems integrators regarding the installation and use of Maxtor hard drives.
This document serves as a reference manual for the Maxtor 536DX hard disk drive, covering models 4W100H6, 4W080H6, 4W060H4, 4W040H3, and 4W030H2. It is intended for OEM engineers and systems integrators, providing detailed technical information on installation, handling precautions, and interface specifications.
The manual includes sections on product features such as Zone Density Recording and Ultra ATA Mode 5 support, comprehensive product specifications including performance and environmental limits, and detailed instructions for handling, unpacking, and physical installation. It also describes the AT interface, host software interface registers, and specific interface commands for read/write operations and diagnostics.
| Supported Models | 4W100H6, 4W080H6, 4W060H4, 4W040H3, 4W030H2 |
|---|---|
| RPM Configurations | 5400- and 7200- RPM |
| Capacity Range | 10 to 80 GB and beyond |
| Interface Support | Ultra ATA - Mode 5 |
| DMA Support | Multi-word DMA (EISA Type B) - Mode 2 |
This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of Maxtor hard drives.
No, drive repair should be performed only at an authorized repair center.
