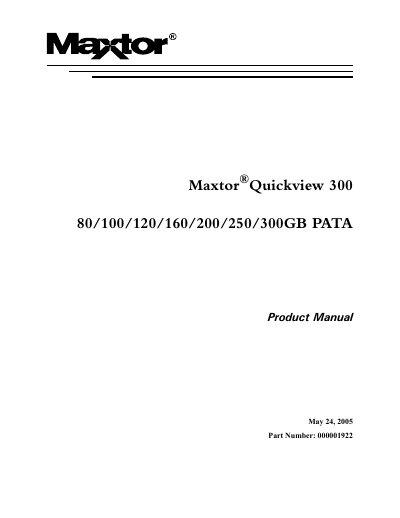

Maxtor®Quickview 300 80/100/120/160/200/250/300GB PATA Product Manual

This manual introduces the features and usage of Maxtor Quickview 300 80/100/120/160/200/250/300GB PATA products.

Brand: Maxtor
Category: Hard disk
Document type: User Manual
Language: English
Pages: 73
File format: PDF
File size: 854 KB
Published: 16 October, 2023
Updated: 16 October, 2023
Model: 300GB
MD5 checksum: 4C4D6F111E10B87C5B2323A71B261311
PDF: Maxtor®Quickview 300 80/100/120/160/200/250/300GB PATA Product Manual PDF

About this manual

The document serves as a product manual for the Maxtor Quickview 300 series of PATA hard disk drives with capacities ranging from 80GB to 300GB. It is intended primarily for OEM engineers and systems integrators, offering guidance on installation, hardware requirements, and system configuration rather than end-user operation.

The guide covers the full lifecycle of integrating these drives into a system, including unpacking precautions, physical mounting, electrical grounding, and ATA bus interface details. It also addresses specific technical topics such as breaking the 137 GB storage barrier and lists comprehensive performance specifications for various models in the series.

What's inside

Introduction
General Description
Installation
Product Specifications
ATA Bus Interface
Service and Support

Specifications

Capacity Range	80/100/120/160/200/250/300GB
Interface Type	PATA
Document Date	May 24, 2005

Frequently asked questions

Who is the intended audience for this manual?

This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of Maxtor hard drives.

Where should drive repair be performed?

Drive repair should be performed only at an authorized repair center.
