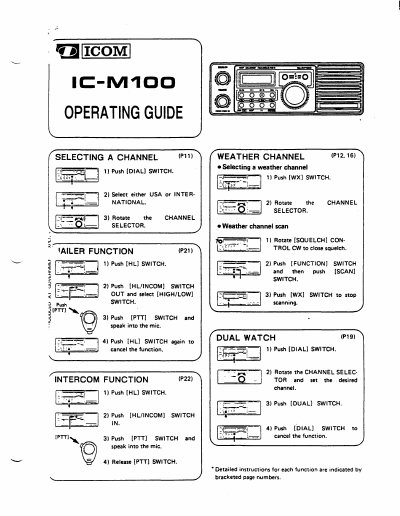

This document is the operating manual of ICOM IC-M100.
This operating guide provides instructions for using the ICOM IC-M100 VHF FM Marine Transceiver. It details unpacking accessories, mounting locations, and control functions including the front and rear panels.
The manual covers basic operations such as receiving and transmitting, along with advanced features like memory channel operation, scanning systems (channel, weather, lockout), dual watch mode, and intercom/hailer functions. It also includes troubleshooting tips, a marine VHF channel chart, sample logs, emergency distress signal procedures, and technical specifications.
| Dimensions | 228mm (W) x 78mm(H) x 208mm (D) |
|---|---|
| Frequency range | 156 ~ 163MHz |
| Power supply requirement | 13.8V DC |
Send MAYDAY three times, state your vessel name and location, give the reason for distress, explain needed assistance, and provide additional vessel details.
The transceiver operates within a temperature range of 20°C to +60°C.
The maximum RF output power is HIGH: 25W.
The unit includes 16 user-programmable memory channels.
