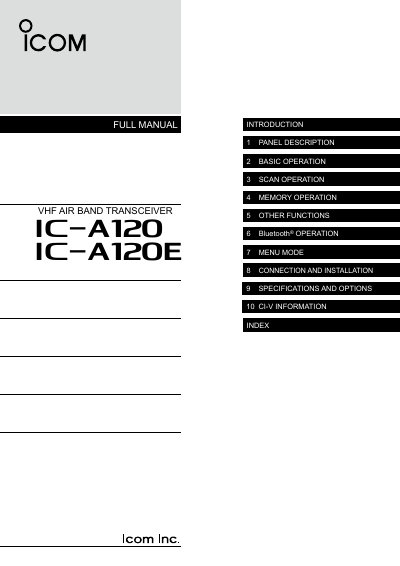

The Icom IC-A120 VHF Air Band Transceiver user manual provides operating instructions, panel description, scan functions, Bluetooth usage, specifications…
The IC‑A120 is a VHF air‑band transceiver designed for reliable communication on the 118‑136 MHz band. It offers features such as memory channels, scan modes, Bluetooth headset support and CI‑V remote control.
This manual covers panel description, basic operation, scan operation, Bluetooth operation, memory functions, connection and installation, menu mode, detailed specifications, options and CI‑V command information, plus an index for quick reference.
| Frequency range | 118.000 to 136.99166 MHz |
|---|---|
| Channel spacing | 25 kHz/8.33 kHz |
| Number of memory channels | 200 |
| Antenna impedance | 50 Ω (nominal) |
| Power supply requirement | 13.75 V/27.5 V DC (negative ground) |
| Current drain (at 13.75 V) | TX 5.0 A, Max audio 4.0 A |
| Operating temperature range | –30 °C to +60 °C (–22 °F to +140 °F) |
| Dimensions | 161 W × 45 H × 175 D mm |
| Weight | 1.5 kg (3.3 lb) |
| Output power | 9 W typical, 10 W maximum |
| Frequency stability | ±5 ppm |
Hold down the power key for 1 second to turn the power on.
Open the SQL window and push the up or down keys to set the desired squelch level.
The Bluetooth icon appears on the display when a Bluetooth headset is connected.
