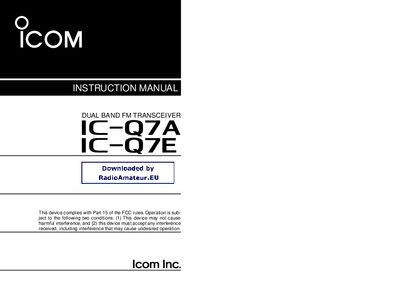

Instruction manual for the Icom IC-Q7A/E dual‑band FM transceiver covering operation, settings, accessories and specifications.
The Icom IC-Q7A/E is a dual‑band FM transceiver designed for amateur radio use. This manual provides detailed instructions on accessory attachment, panel functions, frequency and channel settings, basic operation, memory handling, scanning, priority watch, repeater and sub‑audible tone functions, as well as troubleshooting and optional accessories.
All safety warnings, battery handling guidelines, and regulatory compliance notes are included, along with a full list of technical specifications such as frequency coverage, power output, and performance characteristics.
| Frequency coverage | 144‑148 MHz (VHF), 440‑450 MHz (UHF) transmit; 30‑1300 MHz receive |
|---|---|
| Mode | FM, AM*, WFM* |
| Number of memory channels | 200 |
| Usable temperature range | –10 °C to +60 °C |
| Power supply requirement | 2 AA (R6) Ni‑Cd or alkaline cells |
| Output power (VHF) | 350 mW typical at 3.0 V DC |
| Dimensions | 58 mm × 86 mm × 27 mm |
| Weight | 170 g (6 oz) with antenna and battery |
It uses two AA (R6) alkaline, dry‑cell or optional Ni‑Cd batteries.
The transceiver provides 200 memory channels.
The device operates from –10 °C to +60 °C.
Typical VHF output power is 350 mW at 3.0 V DC.
