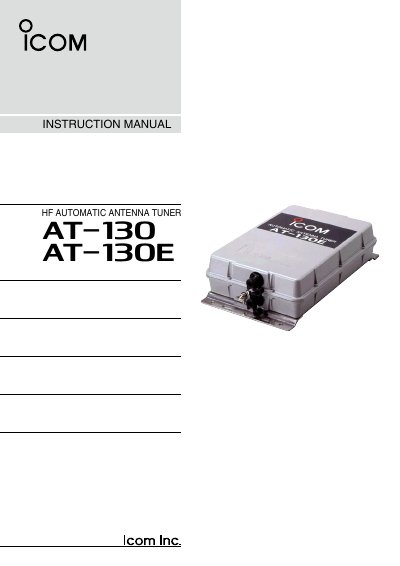

This document is the instruction manual of AT-130 and AT-130E automatic antenna tuners.
This manual provides operating instructions for the Icom AT-130 and AT-130E HF automatic antenna tuners. The devices are designed primarily for use with Icom HF transceivers and feature full automatic tuning, preset memory for up to 45 frequencies, and a super capacitor for memory backup. The AT-130E specifically includes an emergency tuner circuit for 2182 kHz operation to meet European regulations.
| Memory Capacity | 45 frequencies |
|---|---|
| Memory Backup | Super capacitor |
| Operating Temperature | -30°C to +60°C |
| Emergency Tuner | 2182 kHz |
It is included to meet European regulations and automatically selects for 2182 kHz operation if an abnormal condition is detected.
The AT-130/E can automatically store matching conditions for up to 45 frequencies.
Yes, for land mobile operation on 4 MHz or above, an optional AH-2b antenna element is available.
