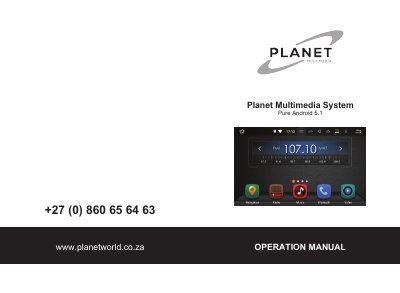

Planet Pure Android 5.1 Multimedia System Operation Manual

This manual is for Planet Multimedia System Pure Android 5.1 operation manual, which introduces the basic functions and usage of the product.

Brand: Planet
Category: Car Accessories
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 865 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: F7D06884486CEE5030E0BB18F9875A33
PDF: Planet Pure Android 5.1 Multimedia System Operation Manual PDF

About this manual

The Planet Pure Android 5.1 is a multimedia system featuring navigation, radio, DVD playback, Bluetooth connectivity, and video capabilities. The device supports various media formats including MP3, WMA, JPEG, and MPEG-4, with a 7-inch TFT screen resolution of 1024*600.

What's inside

Introduction
Frame Function Instructions
Main Interface Operation
DVD and Radio Functions
Bluetooth Operations
Video and Music Playback
Easy Connect and GPS Navigation
Settings and File Management
Troubleshooting

Specifications

Rated voltage	12V
Voltage range	9V- 15.5V
Maximum current	15A
Screen size	7"
Resolution	1024*600
Screen type	TFT
FM Frequency range	87.5MHz- 108.0MHz
Power output	50W*4

Frequently asked questions

What voltage system is this unit designed for?

This unit is fit for a 12v power system and must be connected with a ground wire.

Can I use this unit in a truck or bus?

No, do not install it directly into a vehicle with a 24v power supply as it will permanently damage the unit.

What happens if I change the fuse myself?

Changing the fuse of the unit may cause damage; repairs should be handled by contacting the service department.

What are the supported video formats?

The unit supports H.263, MPEG-4 Simple Profile, and H.264/AVC.
