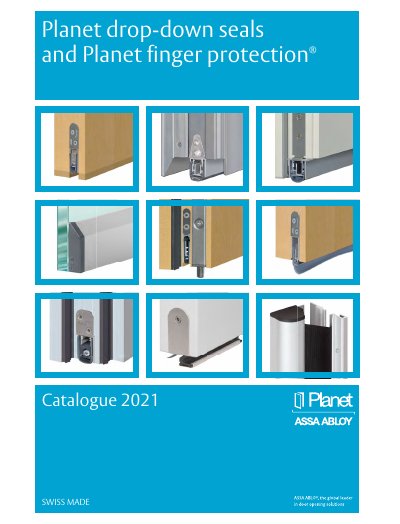

Technical catalogue for Planet drop‑down seals and finger‑protection products with specifications, accessories and warranty information.
The Planet catalogue presents the drop‑down seals and Finger Protection® product families, describing their design, material options, acoustic performance and fire‑rating features. It includes company history, innovations, and detailed technical specifications for each profile type.
The document also provides ordering information, accessories, installation tips, warranty terms (7‑year warranty) and contact details for Planet GDZ AG in Switzerland.
| Profile material | Aluminum |
|---|---|
| Groove size | Width 8.1 mm, depth 30.5 mm up to 40 mm |
| Seal height | Up to 20 mm |
| Sound absorption | Up to 48 dB at 7 mm gap |
| Standard lengths in stock | 460, 585, 710, 835, 960, 1085, 1210, 1335, 1460, 1585 mm |
| Warranty period | 7 years |
Planet offers a 7‑year warranty on its drop‑down seals.
The seals provide up to 48 dB of sound absorption when the gap to the floor is 7 mm.
Seal heights are available up to 20 mm for the standard profiles and up to 12 mm for the TW version.
The seal profiles are made of high‑grade silicone or self‑extinguishing silicone, mounted on aluminum profiles.
