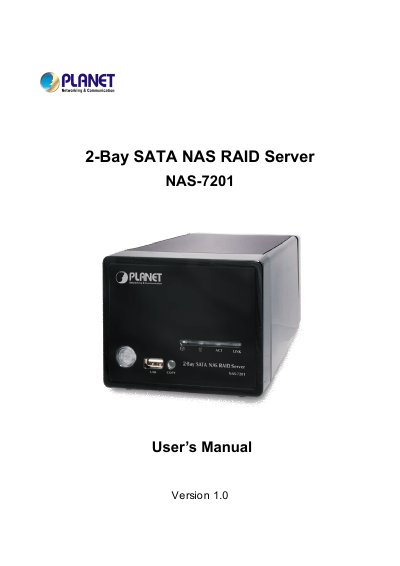

This document is the user manual for the 2-Bay SATA NAS RAID Server NAS-7201, released by PLANET Technology Corp. The manual contains information on the features, characteristics, and usage instructions of the product.
This manual introduces the Planet NAS-7201, a 2‑bay SATA NAS RAID server designed for network storage applications. It explains the key features, package contents, and physical layout of the front and rear panels.
The document guides users through hardware installation, network and USB connections, RAID configuration, web‑based management, and maintenance tasks such as firmware upgrades and factory reset. Appendices include detailed specifications and regulatory compliance information.
| RAID Levels | RAID 0, 1 and JBOD |
|---|---|
| LAN Port | 1 × 10/100/1000 Mbps RJ‑45 |
| USB Connectors | 2 × USB 1.1/2.0 Type‑A |
| Network Protocols | TCP/IP, HTTP, FTP, P2P, SMB |
| Power Supply | External Switch Power, 5 V DC 4.2 A / 12 V DC 3 A |
| Dimensions (W×H×D) | 58 mm × 122 mm × 197 mm |
| Weight | ≈ 726 g |
| Operating Temperature | 10 °C – 50 °C |
| Operating Humidity | 10 % – 95 % |
| Storage Temperature | -10 °C – 70 °C |
| Storage Humidity | 0 % – 95 % |
| Safety Approvals | CE, FCC Class A |
The NAS-7201 supports RAID 0, RAID 1, and JBOD configurations.
It provides two USB 1.1/2.0 Type‑A ports for external storage or printer sharing.
The unit can hold up to 2 TB when equipped with two 1 TB hard drives.
The device measures 58 mm wide, 122 mm high, and 197 mm deep.
