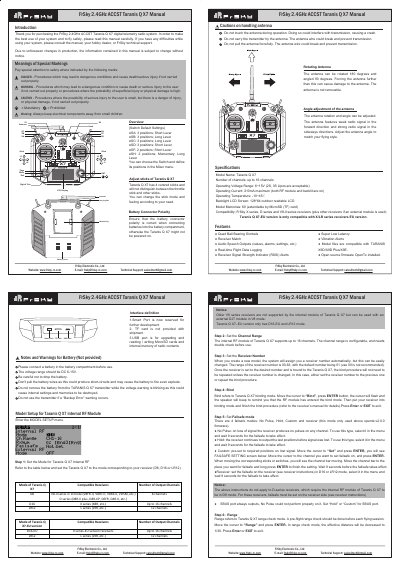

FrSky Taranis Q X7 Digital Telemetry Radio System User Manual

This manual introduces the features and functions of the Taranis Q X7 remote controller, including usage instructions, installation instructions and precautions.

Brand: FrSky
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 1.1 MB
Published: 15 October, 2023
Updated: 15 October, 2023
Model: Taranis Q X7
MD5 checksum: 1504CCAFA1F9493DB33D3774DFA0CBCA
PDF: FrSky Taranis Q X7 Digital Telemetry Radio System User Manual PDF

About this manual

Thank you for purchasing the FrSky 2.4GHz ACCST Taranis Q X7 digital telemetry radio system. This manual provides instructions to help you make the best use of your system and fly safely, covering topics from safety markings to specific operational features like rotating antennas and audio speech outputs.

What's inside

Introduction
Meanings of Special Markings
Specifications
Features
Notes and Warnings for Battery
Overview
Model Setup
Setup for Taranis Q X7 internal RF Module
Cautions on handling antenna

Specifications

Number of channels	up to 16 channels
Operating Voltage Range	6~15V
Operating Current	210mA maximum
Operating Temperature	-10~45°C
Backlight LCD Screen resolution	128*64

Frequently asked questions

What is the operating voltage range for the Taranis Q X7?

The operating voltage range is 6~15V, and 2S or 3S Lipos are acceptable.

How many channels does the Taranis Q X7 support?

The system supports up to 16 channels.
