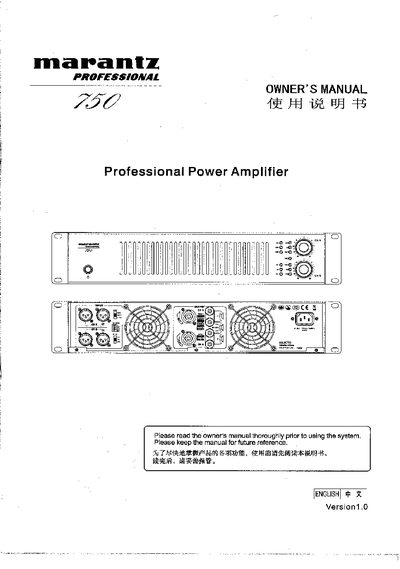

This manual provides step‑by‑step instructions for unpacking, installing, and connecting the MP Series professional power amplifier. It explains how to mount the unit in a standard rack, use the rubber feet for non‑rack installations, and ensure proper airflow for cooling.
The guide also details the amplifier’s operating modes (Stereo, Mono, Bridge), protection features, EMC compliance, front‑panel controls, and safety warnings. Electrical specifications such as voltage configurations, input impedances, and minimum load impedances are listed, along with recommended wiring practices and precautions when the unit is powered on. This manual is written in Chinese.
| Voltage configuration options | 120VAC/60Hz, 220VAC/50Hz, 240VAC/50Hz |
|---|---|
| Minimum load impedance (Stereo/Mono) | 2 Ω per channel |
| Minimum load impedance (Bridge) | 4 Ω |
| Balanced input impedance | 20 kΩ |
The amplifier can be configured for 120 VAC / 60 Hz, 220 VAC / 50 Hz, or 240 VAC / 50 Hz, and the setting cannot be changed after production.
In Stereo or Mono mode each channel requires at least 2 Ω, while in Bridge mode the minimum load impedance is 4 Ω.
