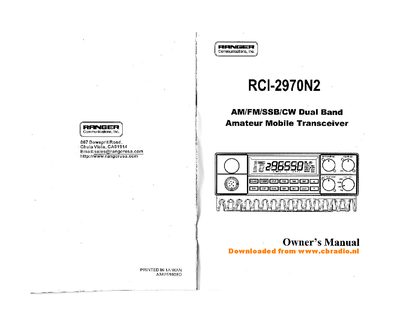

This manual covers the Ranger RCI-2970N2 dual‑band amateur radio transceiver, designed for 10 m and 12 m operation. It includes safety notices, unpacking details, and required FCC licensing information.
Key sections describe installation (mounting and power connection), front‑panel controls, rear‑panel connections, operation of the various modes, programming of frequencies, memory functions, scanning, metering, and troubleshooting. The document also lists the technical specifications of the unit.
| Frequency Range (12 m) | 24.8900 – 24.9900 MHz |
|---|---|
| Frequency Range (10 m) | 28.0000 – 28.6099 MHz |
| Input Voltage | 13.8 V DC |
| Dimensions | 7.78" (W) x 11.5" (D) x 3.25" (H) |
| Weight | 3.0 lb |
| RF Power Output (USB/LSB Peak) | 200 W |
| Sensitivity AM/CW | 0.5 µV for 10 dB SINAD |
| Sensitivity FM | 0.25 µV for 12 dB SINAD |
| Image Rejection Ratio | -65 dB |
| Spurious Emissions | >60 dB |
| Carrier Suppression | -50 dB |
The RCI-2970N2 can store up to 10 frequencies in memory locations 0 to 9.
It operates from any 12 V to 13.8 V DC source; an AC supply must be regulated and rated for at least 30 A continuous.
The 10 m band covers 28.0000 – 28.6099 MHz and the 12 m band covers 24.8900 – 24.9900 MHz.
