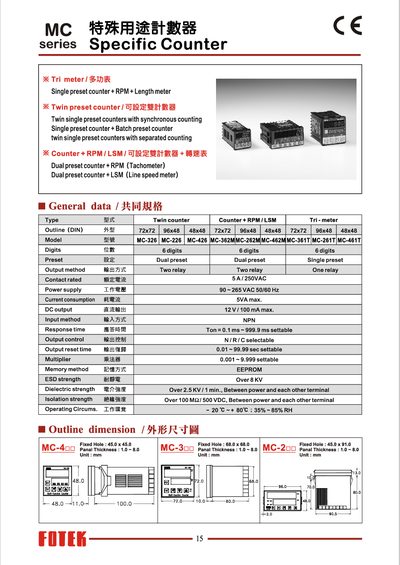

The MC series specific counters provide single, twin, and dual preset counting functions with optional RPM, LSM (line speed meter), and length measurement capabilities. The manual describes how to configure counting modes, set display options, and control output relays for models such as MC‑326, MC‑226, MC‑426, MC‑362M, MC‑262M, MC‑462M, MC‑261T, and MC‑461T.
Detailed sections cover power requirements, input methods, response times, memory configuration, and environmental limits, as well as wiring diagrams and connection details for integrating the counters into measurement systems.
| Power supply | 90 ~ 265 VAC 50/60 Hz |
|---|---|
| Contact rating | 5A/250VAC |
| Current consumption | 5VA max |
| DC output | 12V / 100 mA max |
| Response time | 0.1 ms ~ 999.9 ms (settable) |
| Memory method | EEPROM |
| ESD strength | Over 8 kV |
| Dielectric strength | Over 2.5 kV/1 min. |
| Isolation strength | Over 100 MΩ/500 VDC |
| Operating temperature | -20°C ~ +80°C |
The counters operate from 90 V to 265 V AC at 50/60 Hz.
Each output relay is rated for 5 A at 250 VAC.
Press the [SET] key and select the reset function (1>ud=u) to set the counter value (CV) to zero.
Use the multiplier setting (0.0001 to 9.999) via the appropriate key sequence as described in the manual.
