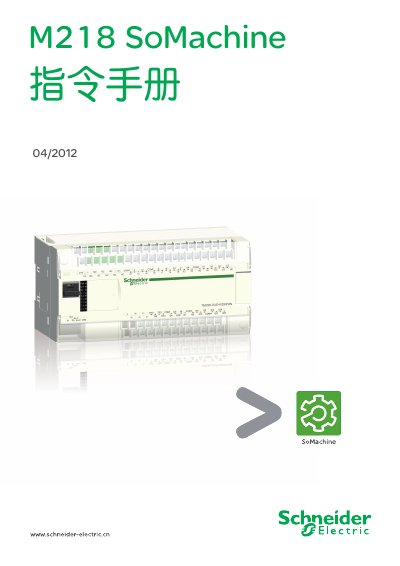

This document introduces Schneider Electric's small PLC product M218 and its accompanying SoMachine software platform. M218 is a high-performance small PLC suitable for small automation equipment. The manual is divided into three parts, introducing the features of the SoMachine software platform, the operators and function block libraries of M218, as well as programming examples and appendix content.
The Schneider Electric M218 is a high-performance, integrated small PLC designed for compact automation equipment. This instruction manual guides users through the SoMachine software environment and the specific programming capabilities of the M218 controller.
The document covers three main areas: an introduction to the SoMachine programming environment including its structure and advantages; detailed descriptions of general operators, functional blocks, and system libraries available for the M218; and practical appendices featuring examples for quick start programming, communication functions, high-speed counting, pulse output, real-time clock (RTC) features, and Structured Text (ST) language usage. This manual is written in Chinese.
| Product Type | Small PLC (Programmable Logic Controller) |
|---|---|
| Platform | SoMachine Automation Platform |
The M218 is a high-performance integrated small PLC developed by Schneider Electric based on advanced control concepts.
The M218 utilizes the SoMachine automation platform for programming and project management.
