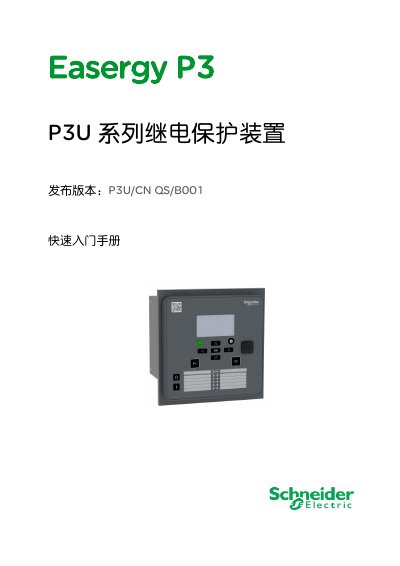

This document introduces the installation, operation, and maintenance of the Easergy P3 P3U series relay protection device. The document includes an overview of the product, wiring instructions, device power-on, front panel operation, Easergy Pro management tool, etc.
This manual provides a quick introduction to the Schneider Electric Easergy P3 P3U series relay protection devices. It includes essential information on safety warnings, legal notices, product identification labels, and storage requirements.
The guide details step-by-step instructions for installation, wiring connections (including CT and VT polarity), powering up the device, and using the front panel keys and LCD display. It also explains how to use the Easergy Pro management tool and defines local port access. This manual is written in Chinese.
This manual covers the unboxing, installation, and wiring information for the Easergy P3 protection device.
You must wear your personal protective equipment (PPE) and strictly follow local electrical safety regulations.
You must strictly prohibit opening the secondary circuit of the current transformer during connection.
