ADV7282/ADV7282-M is a feature-rich single-chip, multi-format video decoder that supports global NTSC/PAL/SECAM color demodulation. It features a 10-bit analog-to-digital converter (ADC) with 4x oversampling for CVBS, Y/C, and YPrPb modes.

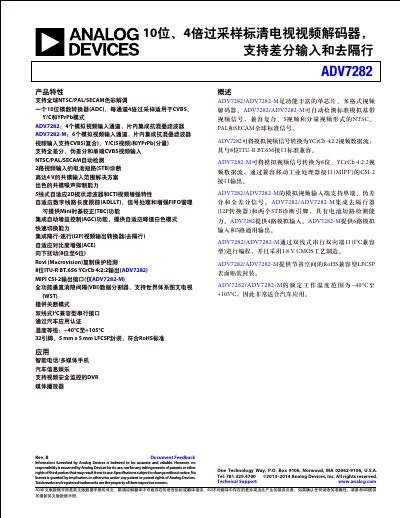

The ADV7282 and ADV7282-M are feature-rich single-chip multi-format video decoders capable of automatically detecting standard analog baseband video signals compatible with NTSC, PAL, and SECAM global standards. The ADV7282 converts analog video signals into a YCrCb 4:2:2 video data stream compatible with the 8-bit ITU-R BT.656 interface, while the ADV7282-M outputs via the MIPI CSI-2 interface. Both devices support single-ended, pseudo-differential, and fully differential analog video inputs and include integrated deinterlacing (I2P) converters and battery short (STB) diagnostic pins. This manual is written in Chinese.
| Operating Temperature Range | -40°C to +105°C |
|---|---|
| Package Type | 32-lead LFCSP |
| Supply Voltage (DVDDIO) | 2.97 V to 3.63 V |
| Common Mode Rejection Ratio | 73 dB |
| Signal-to-Noise Ratio (Brightness Slope) | 57.1 dB |
It supports global NTSC, PAL, and SECAM color demodulation standards.
The device supports CVBS (composite), Y/C (S video), and YPrPb (component) modes.
Yes, the ADV7282-M outputs an 8-bit YCrCb 4:2:2 video data stream via the MIPI CSI-2 interface.
