This is a specification sheet about BR-5CAM-A pipe camera probe.

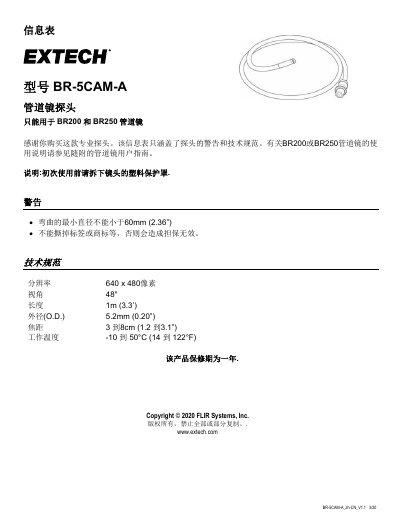

The document provides a specification sheet for the Extech BR-5CAM-A pipe camera probe. It specifies that the probe is designed exclusively for use with the BR200 and BR250 pipe cameras.
Important usage warnings are included, stating that the minimum bore size must not be less than 60mm (2.36 inches) and that the probe cannot be used in acid baths or strong acids to prevent damage. This manual is written in Chinese.
| Outer Diameter | 5.2mm (0.20") |
|---|---|
| Focal Length | 3 to 8cm (1.2 to 3.1 in) |
| Operating Temperature | -10 to 50*C (14 to 122*F) |
The probe is only suitable for use with the BR200 and BR250 pipe cameras.
The minimum bore size cannot be less than 60mm (2.36 inches).
