The AC/DC current probe family includes TCP0020, TCP2020, and TCP202A, designed for various oscilloscopes. They are characterized by high performance and easy operation, supporting DC - ≥ 50 MHz bandwidth and measuring a maximum current of 20 ARMS with high accuracy. TCP0020 and TCP2020 are suitable for measuring a maximum peak of 100 A current, while TCP202A is suitable for measuring a maximum of 15 A DC + peak AC current.

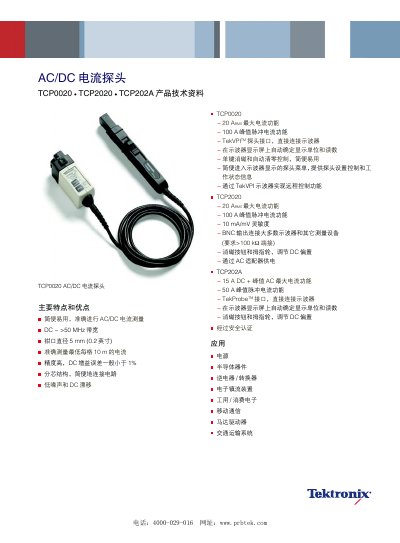

This document describes the Tektronix TCP0020, TCP2020, and TCP202A AC/DC current probe family. These probes are designed for use with various oscilloscopes to provide high-performance current measurement capabilities. The family offers features such as a DC to 50 MHz bandwidth, high accuracy, and ease of use, with specific models offering TekVPI or TekProbe interfaces or BNC outputs. This manual is written in Chinese.
| Bandwidth | DC - ≥ 50 MHz |
|---|---|
| Rise Time | ≤ 7 ns |
| Max RMS Current (TCP0020/TCP2020) | 20 A |
| Max DC + Peak AC Current (TCP202A) | 15 A |
| Max Peak Pulse Current (TCP0020/TCP2020) | 100 A |
| Max Peak Pulse Current (TCP202A) | 50 A |
| DC Accuracy | ± 1% typical |
| Clamp Diameter | 5 mm (0.2 inch) |
| Max Bare Wire Voltage | 150 V CAT II |
| Operating Temperature | 0℃ - +50℃ |
The bandwidth for all models in this family is DC to ≥ 50 MHz.
The TCP0020 and TCP202A models are designed with the TekVPI probe interface for direct connection to oscilloscopes.
The TCP0020 and TCP2020 models have a maximum RMS current rating of 20 A.
Yes, the TCP2020 is powered via an AC adapter.
