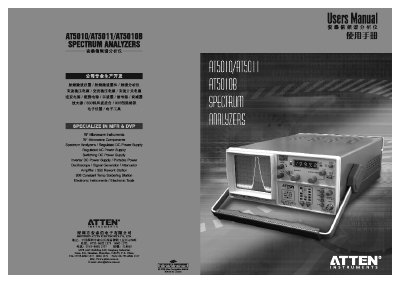

This manual provides operating instructions, safety information and calibration procedures for the AT5010 and AT5011 spectrum analyzers. It includes a table of contents with sections such as Introduction, Operating Instructions, Control Elements, Vertical and Horizontal Calibration, and Performance specifications.
The document also contains technical data, block diagrams, front‑view illustrations and detailed specifications like frequency range, input voltage and power rating, helping users set up and maintain the equipment correctly.
| Frequency range | 0.15 MHz ~ 1050 MHz |
|---|---|
| Input voltage | 220 V + 10 %, 50 Hz ~ 60 Hz |
The analyzer covers from 0.15 MHz up to 1050 MHz.
It operates on 220 V with a tolerance of ±10 % at 50 Hz to 60 Hz.
