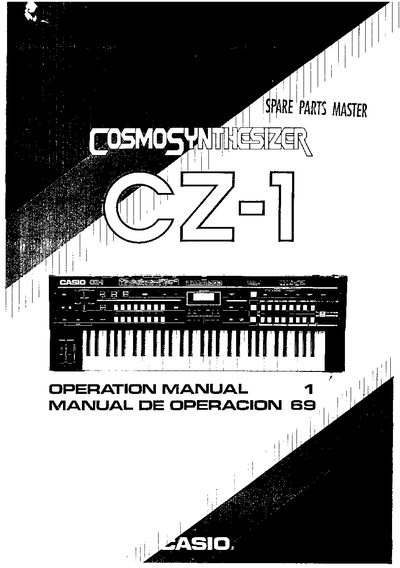

This manual explains the four main operating modes of the CZ-1 synthesizer—Normal, Tone Mix, Key Split, and Operation Memory—detailing how to recall, modify, and store tones, as well as how to use the various control sections such as Overall Control, Mode Select, and the LCD display. It also covers the front‑panel layout, rear‑panel connections, and MIDI settings for integration with other equipment.
The document includes technical specifications (power supply options, power consumption, dimensions, weight, and battery life), safety warnings, and accessory listings. It provides guidance on proper voltage selection, FCC compliance, and troubleshooting interference issues.
| Power supply voltage | 100V, 120V, 220V, 240V AC |
|---|---|
| Power consumption | 30W |
| Dimensions (W x D x H) | 1025 mm × 341 mm × 127 mm |
| Weight | 13 kg (28.7 lb) |
| Battery backup life | Approximately 5 years |
The instrument operates on 100 V, 120 V, 220 V, or 240 V AC.
The battery is rated for approximately five years of service.
