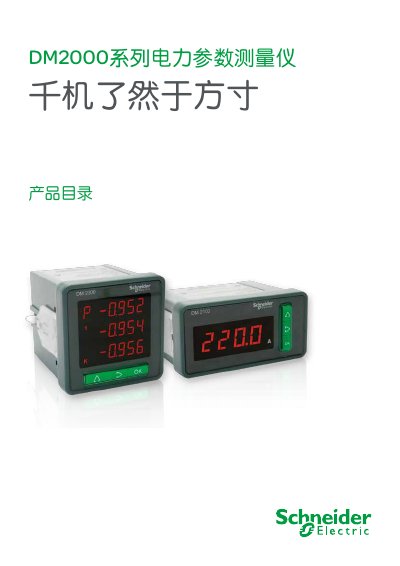

The DM2000 series power parameter measuring instrument is a new product in Schneider Electric's EasyLogic instrument family. It features simple functions, compact size, intuitive display, easy operation, and convenient installation. It is suitable for monitoring and measuring power parameters in various industries.
The Schneider Electric DM2000 Series power parameter measuring instruments are new products in the EasyLogic instrument family. They feature a classic design with simple functions, compact size, intuitive display, easy operation, and convenient installation. The series is suitable for distribution system monitoring and energy management measurement across various industries.
The series includes multiple models supporting single-phase and three-phase voltage and current measurements, as well as power factor and energy metering. Key features include Modbus RS485 communication, digital inputs for switch status, and a relay output for alarm or remote control. The instruments are designed for compact installation in distribution panels and offer high-brightness displays for easy reading. This manual is written in Chinese.
| Input Voltage Measurement Range | 25～450V direct L-L, 0－35K V (with external VT) |
|---|---|
| Input Current Measurement Range | 0.05～6A AC |
| Working Power Supply | AC 85V AC～265V AC, DC 85VDC～265VDC |
| Digital Input Resolution | 2ms |
| RS485 Communication Speed | 1200 to 9600 bps |
| Operating Temperature | -20 to 60 degrees Celsius |
| Single Phase Dimensions | 48x96mm (External), 44x90mm (Cutout) |
| Three Phase Dimensions | 72x72mm (External), 66x66mm (Cutout) |
Single-phase models have an external size of 48x96mm and a cutout size of 44x90mm.
The instruments operate within a temperature range of -20 to 60 degrees Celsius.
