This document describes the features and characteristics of Everlight's 3mm infrared LED (IR204/H60). The LED has high reliability, high radiant intensity, a peak wavelength of 940nm, low forward voltage, etc. It is suitable for free air transmission systems, infrared remote control units with high power requirements, smoke detectors, and infrared applied systems.

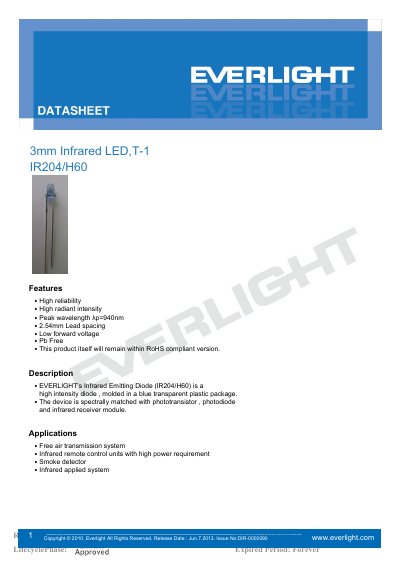

This document is a datasheet for the Everlight IR204/H60, a high-intensity 3mm Infrared Emitting Diode (IR LED) packaged in blue transparent plastic. The device features a peak wavelength of 940nm and is spectrally matched with phototransistors and infrared receiver modules.
| Peak Wavelength | 940 nm |
|---|---|
| Continuous Forward Current | 100 mA |
| Reverse Voltage | 5 V |
| Operating Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +100 °C |
The peak wavelength (λp) is 940nm.
Yes, the document states it will remain within RoHS compliant version and is Pb Free.
For hand soldering, use a tip temperature of 300°C max for 3 seconds max.
