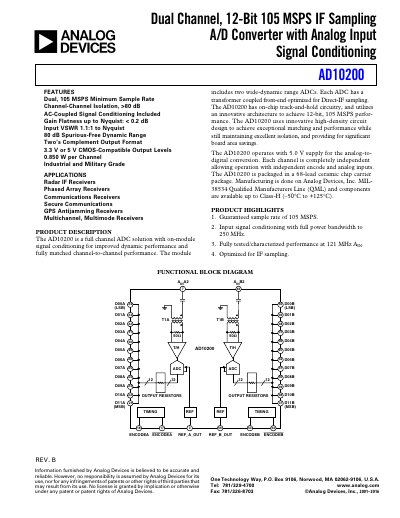

The AD10200 is a dual-channel, 12-bit 105 MSPS IF sampling A/D converter with analog input signal conditioning and other features.
The AD10200 is a full channel ADC solution featuring two wide-dynamic range ADCs optimized for Direct-IF sampling. It includes an on-module transformer-coupled front-end and track-and-hold circuitry to achieve 12-bit performance at speeds up to 105 MSPS with excellent channel-to-channel matching.
The device operates from a single 5.0 V supply and is packaged in a 68-lead ceramic chip carrier. It supports industrial and military grade applications, operating over a temperature range of –50°C to +125°C.
| Resolution | 12 Bits |
|---|---|
| Sample Rate (Max) | 105 MSPS |
| Channel-to-Channel Isolation | >80 dB |
| Operating Temperature | -50°C to +125°C |
| Package Type | 68-lead ceramic chip carrier |
It is designed for Radar IF Receivers, Phased Array Receivers, Communications Receivers, Secure Communications, GPS Antijamming Receivers, and Multichannel, Multimode Receivers.
The analog input voltage range is 2.048 V p-p.
Yes, it is an ESD sensitive device where electrostatic charges as high as 4000 V can cause permanent damage.
