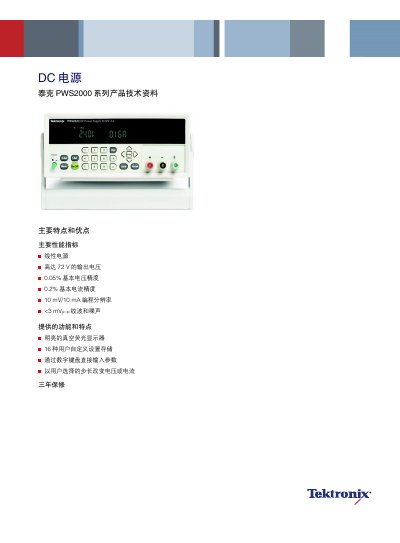

This document introduces the features and advantages of the Tek PWS2000 series linear power supply, including an output voltage of up to 72V, a basic voltage accuracy of 0.05%, a basic current accuracy of 0.2%, etc. The product features a bright vacuum fluorescent display, 16 user-defined settings storage, direct input of parameters via a numeric keypad, and other functions. Additionally, the product comes with a three-year warranty.
The Tektronix PWS2000 Series is a linear DC power supply designed for various testing and application needs. It offers a wide range of output voltages and currents with high precision and low noise characteristics. Key features include a bright vacuum fluorescent display, 16 user-defined setting memories, and direct parameter entry via a digital keypad. This manual is written in Chinese.
| Output Voltage Range | 0 - 18 V, 0 - 32 V, or 0 - 72 V |
|---|---|
| Output Current Range | 0 - 5 A, 0 - 3 A, 0 - 6 A, or 0 - 1.5 A |
| Basic Voltage Accuracy | 0.05% |
| Basic Current Accuracy | 0.2% |
| Ripple and Noise | < 3 mV p-p |
| Display Type | Vacuum Fluorescent Display |
| Setting Storage | 16 user-defined settings |
| Operating Temperature | 0°C - 40°C |
| Input Voltage (110 V AC) | 99 V RMS - 132 V RMS |
The unit provides 16 user-defined setting storage locations.
It features a bright vacuum fluorescent display with large font characters.
The basic voltage accuracy is 0.05%.
