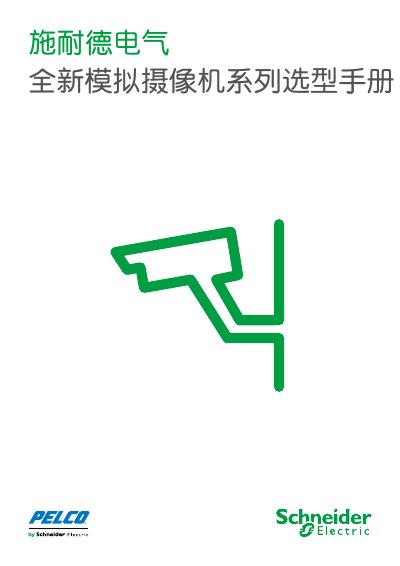

This document is a selection guide for Schneider Electric's new analog camera series. The series includes C20 fixed bullet cameras, FD fixed dome cameras, BU infrared bullet integrated cameras, etc. These cameras feature high-quality image sensors and signal processors, supporting PAL format and suitable for the Chinese market. They also have various features such as day/night mode and wide dynamic range mode. Schneider Electric is a well-known camera manufacturer founded in 1957, known for its high quality and reliability. The company offers multiple series of camera products and ensures the quality of its products through certified quality standards.
This document is a selection guide for the Schneider Electric new analog camera series, covering the C20 fixed bullet camera series, the FD1 and FD2 indoor fixed dome camera series, and the BU infrared bullet integrated camera series. It provides detailed model lists, technical parameters, and functional features for each product line. This manual is written in Chinese.
| Image Sensor | Sony 1/3 inch EX viewHAD CCD II |
|---|---|
| Resolution | 976(H)x582(V), approx. 570k |
| Scanning Lines | 625 lines |
| Horizontal Resolution | 650 lines |
| Sensitivity (Color) | 0.25 Lux (f/1.2, 20ms) |
| Signal-to-Noise Ratio | 48dB |
| Power Supply | 12VDC/24VAC |
| Operating Temperature | -10°C to 50°C |
The C20 series uses a Sony 1/3 inch EX viewHAD CCD II sensor.
The horizontal resolution is 650 lines.
The operating temperature range is -10°C to 50°C.
The cameras require a power supply of 12VDC/24VAC.
