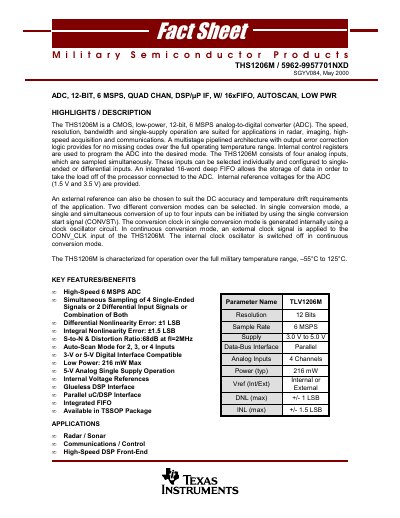

The THS1206M is a CMOS, low-power, 12-bit, 6 MSPS analog-to-digital converter (ADC) that is suitable for applications in radar, imaging, high-speed acquisition and communications.
The THS1206M is a CMOS, low-power, 12-bit, 6 MSPS analog-to-digital converter (ADC) designed for applications in radar, imaging, high-speed acquisition, and communications. It features a multistage pipelined architecture with output error correction logic to ensure no missing codes over the full operating temperature range. The device includes four analog inputs that can be sampled simultaneously and configured for single-ended or differential operation.
| Resolution | 12 Bits |
|---|---|
| Sample Rate | 6 MSPS |
| Supply Voltage | 3.0 V to 5.0 V |
| Analog Inputs | 4 Channels |
| Power (typ) | 216 mW |
| Operating Temperature | -55°C to 125°C |
| Package | 32-pin TSSOP |
The maximum sample rate is 6 MSPS.
The maximum power dissipation is 216 mW.
The device operates from -55°C to 125°C.
