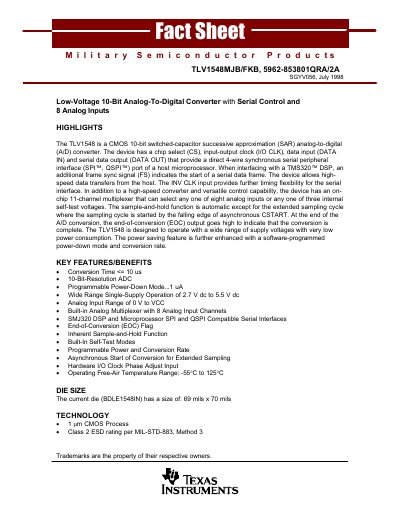

Low-Voltage 10-Bit Analog-To-Digital Converter with Serial Control and 8 Analog Inputs
The TLV1548 is a CMOS 10-bit switched-capacitor successive approximation (SAR) analog-to-digital converter designed for military applications. It features an on-chip 11-channel multiplexer that selects from eight analog inputs or three internal self-test voltages, along with inherent sample-and-hold functionality.
| Resolution | 10-Bit |
|---|---|
| Conversion Time | <= 10 us |
| Power Consumption (Power-Down) | 1 uA |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Analog Input Range | 0 V to VCC |
| Operating Temperature Range | -55°C to 125°C |
The conversion time is less than or equal to 10 microseconds.
Yes, it has an on-chip 11-channel multiplexer that can select any one of eight analog inputs or three internal self-test voltages.
Yes, it is compatible with TMS320 DSP and Microprocessor SPI and QSPI interfaces.
