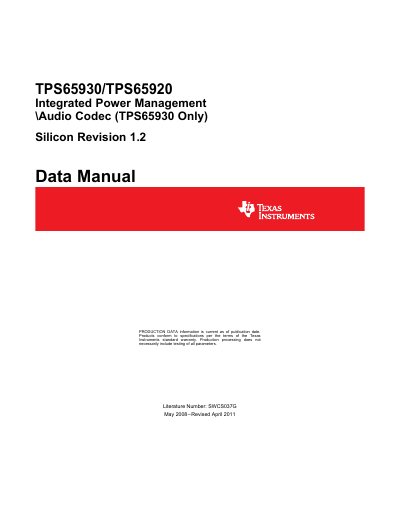

Texas Instruments TPS65930/TPS65920 Integrated Power Management Datasheet

The TPS65930/TPS65920 is an integrated power management audio codec released by Texas Instruments. Its features are as follows:

Brand: Texas Instruments
Category: Power Management
Document type: Datasheet
Language: English
Pages: 117
File format: PDF
File size: 1.5 MB
Published: 08 April, 2013
Updated: 30 September, 2023
MD5 checksum: EF815E38459FDD0D956C446C103A88D3
PDF: Texas Instruments TPS65930/TPS65920 Integrated Power Management Datasheet PDF

About this manual

This document is a technical datasheet for the Texas Instruments TPS65930 and TPS65920 Integrated Power Management devices. It provides detailed specifications for power providers including VDD1, VDD2, VIO DC-DC regulators and various LDOs (VDAC, VPLL1, VMMC1, VAUX2). The datasheet also covers the Real-Time Clock (RTC), Embedded Power Controller (EPC), and specific features of the TPS65930 such as the Audio Codec module.

What's inside

Introduction
Terminal Description
Electrical Characteristics
Power Module
Real-Time Clock and Embedded Power Controller
Audio/Voice Module (TPS65930 Only)
USB Transceiver
LED Drivers
Clock Specifications
Package Information

Specifications

Document Revision	Silicon Revision 1.2
Literature Number	SWCS037G
Publication Date Range	May 2008-Revised April 2011

Frequently asked questions

What is the TPS65930/TPS65920?

The TPS65930/TPS65920 is an integrated power management device.

Does the TPS65930 include an audio codec?

Yes, the TPS65930 includes an audio codec, but the TPS65920 does not.
