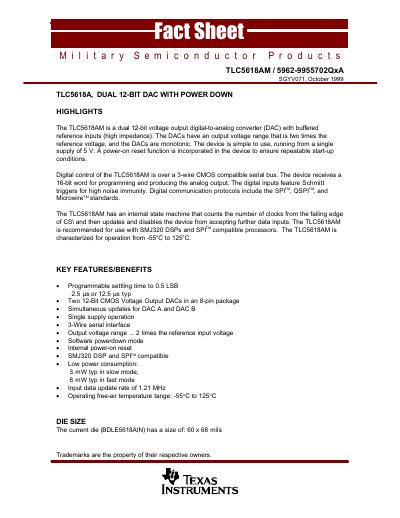

TLC5618AM/5962-9955702QxA is a 12-bit digital-to-analog converter (DAC) with two channels, voltage output, programmable digital control, and can simultaneously update DAC A and DAC B. It is single-supply and has a 3-wire serial interface.
The TLC5618AM is a dual 12-bit voltage output digital-to-analog converter (DAC) with buffered reference inputs designed for military applications. The device operates from a single 5 V supply and features an internal power-on reset to ensure repeatable start-up conditions. It supports simultaneous updates for both DAC channels and includes software power-down mode for low power consumption.
| Resolution | Dual 12-bit |
|---|---|
| Output Type | Voltage output |
| Supply Voltage | 5 V |
| Operating Temperature Range | -55°C to 125°C |
| Power Consumption (Slow Mode) | 3 mW typ |
| Power Consumption (Fast Mode) | 8 mW typ |
| Input Data Update Rate | 1.21 MHz |
| Package Type | 8-pin Ceramic Dual in Line Package (JG) |
The device supports SPI, QSPI, and Microwire standards.
Yes, an internal state machine provides a power-on reset to ensure repeatable start-up conditions.
The DACs have an output voltage range that is two times the reference voltage.
