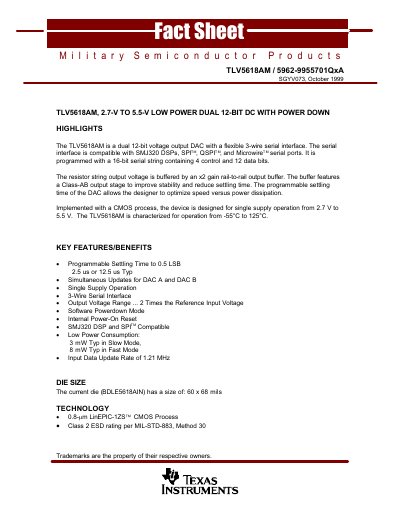

The TLV5618AM is a dual 12-bit voltage output DAC with a flexible 3-wire serial interface that is compatible with SMJ320 DSPs, SPITM, QSPITM, and MicrowireTM serial ports. It is programmed with a 16-bit serial string containing 4 control and 12 data bits.
The TLV5618AM is a dual 12-bit voltage output digital-to-analog converter (DAC) designed for single supply operation from 2.7 V to 5.5 V. It features a flexible 3-wire serial interface compatible with SMJ320 DSPs, SPI, QSPI, and Microwire ports. The device includes an x2 gain rail-to-rail output buffer with a Class-AB output stage to improve stability and reduce settling time.
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Resolution | 12-bit |
| Operating Temperature Range | -55°C to 125°C |
| Power Consumption (Slow Mode) | 3 mW Typ |
| Power Consumption (Fast Mode) | 8 mW Typ |
| Input Data Update Rate | 1.21 MHz |
The output voltage range is 2 times the reference input voltage.
Yes, the device includes a software powerdown mode to reduce consumption.
