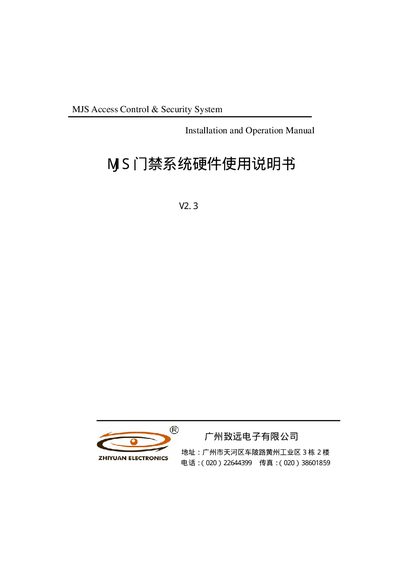

ZhiYuan MJS Series Access Control System Installation and Operation Manual

MJS Access Control & Security System Installation and Operation Manual mainly introduces the composition, functional characteristics, performance indicators, input and output, controller wiring and installation, controller setting and debugging, troubleshooting and diagnosis of MJS access control system

Brand: ZLG
Category: Anti-Theft Devices
Document type: User Manual
Language: Chinese
Pages: 38
File format: PDF
File size: 580 KB
Published: 18 September, 2011
Updated: 30 September, 2023
MD5 checksum: 465B21D895769A7016F865960C4C735C
PDF: ZhiYuan MJS Series Access Control System Installation and Operation Manual PDF

About this manual

This manual provides detailed instructions for installing, configuring and operating the MJS series access control controllers (MJS‑200, MJS‑200C, MJS‑400, MJS‑400C). It includes hardware connection diagrams, power requirements, communication interfaces and software setup.

The document also covers performance specifications, input/output functions, and troubleshooting steps to help users maintain reliable access control operation. This manual is written in Chinese.

What's inside

Introduction
Functional Features
Performance Indicators
Input and Output
Controller Connection and Installation
Management Software Installation
Troubleshooting
Appendix – Component List
Specifications

Specifications

Power Supply	12V DC, 500 mA
Operating Temperature	-20 °C~70 °C
Maximum Control Points	236 points per controller
PCB Size	134 mm × 122 mm

Frequently asked questions

What is the power requirement for the controller?

The controller requires a 12 V DC power supply with a current of about 500 mA.

How many control points can a single MJS controller manage?

A controller can manage up to 236 control points.

What is the operating temperature range?

The device operates from –20 °C to 70 °C.

Download PDF (580 KB)
