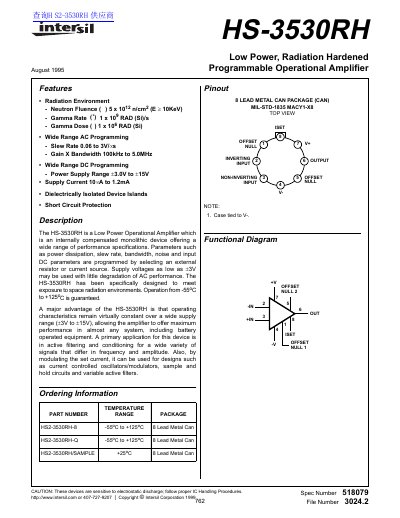

Intersil HS-3530RH Programmable Operational Amplifier Datasheet

The HS-3530RH is a Low Power, Radiation Hardened Programmable Operational Ampliﬁer from Intersil Corporation.

Brand: Intersil
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 12
File format: PDF
File size: 109 KB
Published: 10 August, 2012
Updated: 01 October, 2023
MD5 checksum: A25E07A84B9238A545FC893B1147FCE9
PDF: Intersil HS-3530RH Programmable Operational Amplifier Datasheet PDF

About this manual

The HS-3530RH is a low-power operational amplifier specifically designed to meet exposure to space radiation environments. It is an internally compensated monolithic device offering a wide range of performance specifications, with parameters such as power dissipation, slew rate, bandwidth, and input DC parameters being programmable via an external resistor or current source. The device operates from -55°C to +125°C and is available in an 8-lead metal can package.

What's inside

Features
Pinout
Description
Ordering Information
Absolute Maximum Ratings
Reliability Information
Operating Conditions
DC Electrical Performance Characteristics
AC Electrical Performance Characteristics
Post Rad DC Electrical Performance Characteristics

Specifications

Operating Temperature Range	-55°C to +125°C
Supply Voltage Range	+3.0V to +15V
Slew Rate	0.06 to 3V/us
Gain X Bandwidth	100kHz to 5.0MHz
Neutron Fluence	5 x 10^7 n/cm^2
Gamma Rate	1 x 10^6 RAD (Si)/s
Gamma Dose	1 x 10^6 RAD (Si)

Frequently asked questions

What is the operating temperature range for the HS-3530RH?

The device is guaranteed for operation from -55°C to +125°C.

Download PDF (109 KB)
