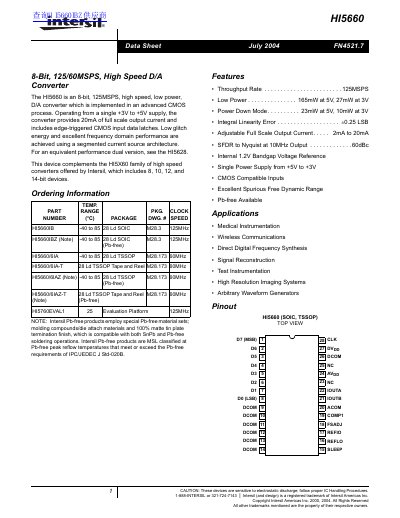

INTERSIL HI5660IBZ Datasheet

This datasheet introduces the HI5660 8-bit, 125MSPS, high speed D/A converter's features.

Brand: Intersil
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 219 KB
Published: 17 October, 2012
Updated: 30 September, 2023
MD5 checksum: 992C91EA25E4CCF9F394FFF4667A6D8B
PDF: INTERSIL HI5660IBZ Datasheet PDF

About this manual

The Intersil HI5660 is an 8-bit, high-speed D/A converter implemented in advanced CMOS technology. It features edge-triggered CMOS input data latches and operates from a single power supply ranging from +3V to +5V. The device provides up to 20mA of full-scale output current and includes an internal 1.2V bandgap voltage reference.

What's inside

Features
Ordering Information
Pinout
Typical Applications Circuit
Functional Block Diagram
Absolute Maximum Ratings
Operating Conditions
Electrical Specifications
Timing Characteristics

Specifications

Resolution	8 Bits
Throughput Rate	125MSPS
Full Scale Output Current	2mA to 20mA
Operating Temperature Range	-40°C to 85°C
Maximum Junction Temperature	150°C

Frequently asked questions

What is the operating voltage range for the HI5660?

The converter operates from a single +3V to +5V supply.

Does the HI5660 include an internal voltage reference?

Yes, it includes an internal 1.2V bandgap voltage reference.

What is the maximum clock rate for the HI5660?

The maximum clock rate is 125 MHz.
