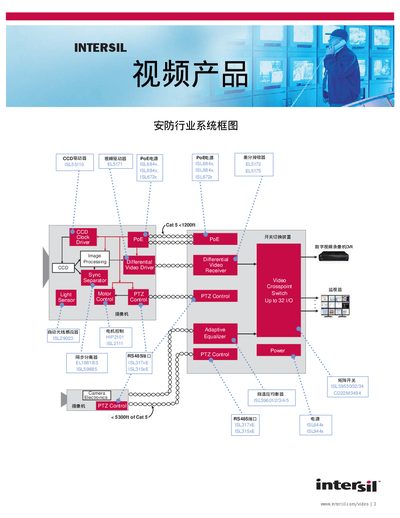

A Chinese catalog describing InterSil video‑related ICs, modules and their key features, specifications and applications.
The document is a product catalog for InterSil video‑related integrated circuits and modules. It covers a wide range of products such as adaptive equalizers, image processors, motor controllers, sync separators, CCD drivers, PoE power supplies, differential video drivers, and video matrix switches. Each product entry includes a brief description, functional highlights, typical applications and key electrical parameters.
The catalog is organized by product families, for example the CCP clock driver (ISL55110/ISL55111), the ISL29023 ambient light sensor, the EL1881 video sync separator, the HP2101 high‑frequency half‑bridge driver, the EL5171/EL5172 differential video driver/receiver, the ISL317xE RS‑485 transceiver, the ISL5960x adaptive video equalizer, and the ISL59530 series video matrix switch. Technical data such as voltage ranges, current capability, timing specs and temperature limits are provided for each device. This manual is written in Chinese.
| Pulse amplitude range (ISL55110/ISL55111) | 5 V to 12 V |
|---|---|
| Maximum drive current (ISL55110/ISL55111) | 3.5 A |
| Minimum pulse width (ISL55110/ISL55111) | 6.0 ns |
| Rise/fall time (ISL55110/ISL55111) | 1.5 ns |
| Operating temperature (EL1881 sync separator) | -40 °C to +85 °C |
| Video input voltage range (EL1881) | 0.5 Vpp to 2.0 Vpp |
It operates from –40 °C to +85 °C.
It accepts video inputs from 0.5 Vpp up to 2.0 Vpp.
They can drive up to 3.5 A of current.
