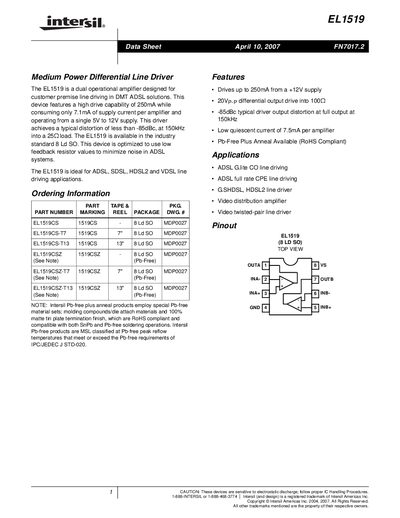

The EL1519 is a medium power differential line driver from Intersil, which is ideal for ADSL, SDSL, HDSL2 and VDSL line driving applications.
The EL1519 is a dual operational amplifier designed for customer‑premise line driving in DMT ADSL solutions. It delivers up to 250 mA drive current while consuming only about 7.5 mA per amplifier and operates from a single 5 V to 12 V supply.
Key features include low distortion (‑85 dBc at 150 kHz), a 20 V p‑p differential output into 100 Ω, and a wide operating temperature range. The device is offered in an 8‑lead small‑outline package and is suitable for ADSL, SDSL, HDSL2 and VDSL line‑driving applications.
| Maximum Output Current | 250 mA |
|---|---|
| Quiescent Current per Amplifier | 7.5 mA |
| Differential Output Drive | 20 V p‑p into 100 Ω |
| Supply Voltage (single supply) | 5 V to 12 V |
| Package Type | 8‑lead Small Outline (SO) |
The EL1519 can drive up to 250 mA per amplifier.
It operates from a single supply of 5 V to 12 V, and can work with voltages as low as 2.5 V to 6 V in some configurations.
The device is offered in an industry‑standard 8‑lead small‑outline (SO) package.
