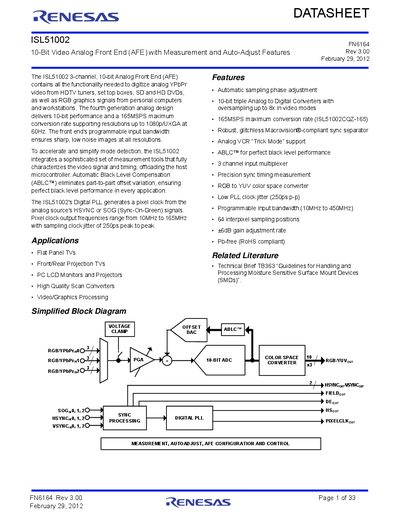

This datasheet details the ISL51002, a 3-channel 10-bit Analog Front End for digitizing YPbPr video and RGB graphics with measurement and auto-adjust features.
The ISL51002 is a 3-channel, 10-bit Analog Front End (AFE) designed to digitize analog YPbPr video from HDTV tuners, set top boxes, SD and HD DVDs, as well as RGB graphics signals from personal computers and workstations. It features a 165MSPS maximum conversion rate, programmable input bandwidth, automatic black level compensation, and a digital PLL for generating a pixel clock.
| Conversion Rate | 10 to 165 MHz |
|---|---|
| ADC Resolution | 10 Bits |
| Maximum Junction Temperature | +125°C |
| Supply Voltage Range | 3.3V ±10%, 1.8V ±10% |
| Operating Temperature Range | 0°C to +70°C |
| PLL Jitter | 250 ps p-p |
| Input Bandwidth | 10 to 450 MHz |
The maximum conversion rate is 165MSPS.
Yes, it integrates Automatic Black Level Compensation (ABLC™) to eliminate part-to-part offset variation.
The device requires a 3.3V analog supply and a 1.8V analog supply, both within ±10% tolerance.
