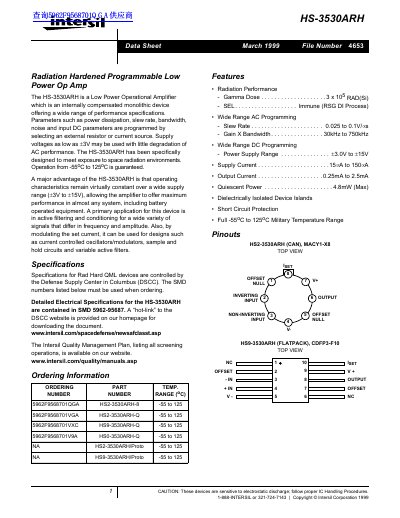

The HS-3530ARH is a radiation-hardened programmable low power op-amp with a wide range of performance specifications. It is designed for space radiation environments and offers constant operating characteristics and wide supply voltage range. It is primarily used in active filtering and signal conditioning applications.
The HS-3530ARH is a low-power operational amplifier specifically designed to meet exposure to space radiation environments. It is an internally compensated monolithic device offering a wide range of performance specifications, including power dissipation, slew rate, bandwidth, noise, and input DC parameters, which can be programmed by selecting an external resistor or current source.
The device operates with supply voltages as low as ±3V and guarantees operation from -55°C to 125°C. A major advantage is that operating characteristics remain virtually constant over a wide supply range (±3V to ±15V), making it suitable for battery-operated equipment. Primary applications include active filtering, conditioning, current controlled oscillators, sample and hold circuits, and variable active filters.
| Supply Voltage Range | ±3.0V to ±15V |
|---|---|
| Operating Temperature Range | -55°C to 125°C |
| Gamma Dose | 3 x 10 5 RAD(Si) |
| Slew Rate | 0.025 to 0.1V/ µs |
| Gain X Bandwidth | 30kHz to 750kHz |
| Supply Current | 15 µA to 150µA |
| Output Current | 0.25mA to 2.5mA |
| Quiescent Power | 4.8mW (Max) |
A primary application for this device is in active filtering and conditioning for a wide variety of signals that differ in frequency and amplitude.
Yes, it is suitable for battery-operated equipment because its operating characteristics remain virtually constant over a wide supply range (±3V to ±15V).
