Panasonic AN8028 handbook

The AN8028 is an IC developed for controlling the self-excited switching power supply employing the RCC pseudo-resonance type control method. It is compact, equipped only with the necessary minimum functions. The maximum on-period and the minimum off-pe- riod can be set separately by using the external capacitor and resistor respectively. It is suitable for the power supply of AV equipment.

Brand
Panasonic
File format
PDF
Published
09 August, 2012
Updated
30 September, 2023
MD5 checksum
BC5EC6BA4300DB9ADFA65DCD799F1261
PDF

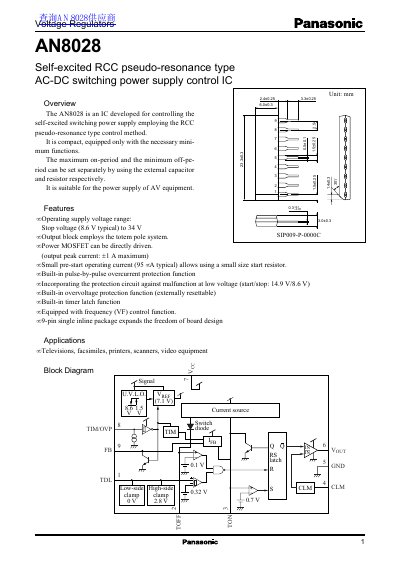

Panasonic AN8028 handbook PDF
Download PDF
