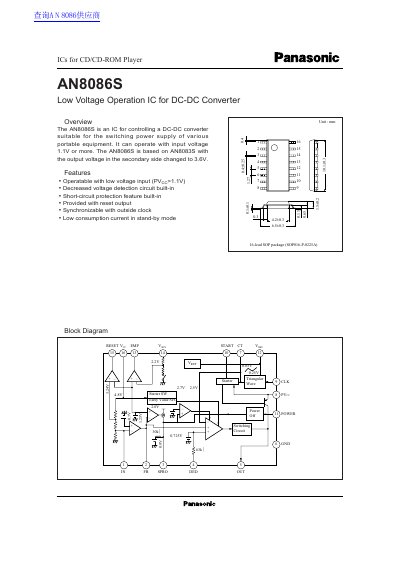

AN8086S is an IC for controlling a DC-DC converter suitable for the switching power supply of various portable equipment. It can operate with input voltage 1.1V or more. The AN8086S is based on AN8083S with the output voltage in the secondary side changed to 3.6V. Features include: operatable with low voltage input, decreased voltage detection circuit built-in, short-circuit protection feature built-in, provided with reset output, synchronizable with outside clock, low consumption current in stand-by mode.
The AN8086S is an integrated circuit designed to control a DC-DC converter for switching power supplies in various portable devices. It features low voltage operation starting at 1.1V and includes built-in protection circuits such as decreased voltage detection and short-circuit protection. The device operates with a secondary side output voltage of 3.6V.
| Supply Voltage (Vcc) | 3.6V ~ 12V |
|---|---|
| Input Voltage (PVcc) | 1.1V ~ 12V |
| Operating Ambient Temperature | -20 ~ +75 °C |
| Storage Temperature | -55 ~ +125 °C |
| Output Voltage (Vo) | 3.6V |
| Reset Output Threshold Voltage | 0.85V ~ 0.95V |
| Decreased Voltage Detection Threshold | 2.1V ~ 2.3V |
