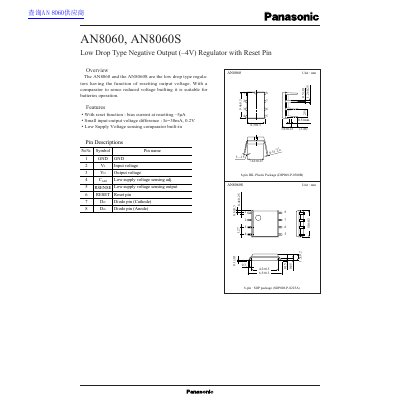

The AN8060 and AN8060S are low drop type regulators with the function of resetting output voltage. They have a comparator to sense reduced voltage building, making them suitable for battery operation. Features include: reset function with a bias current of -5µA; small input-output voltage difference: IO=30mA, 0.2V; built-in low supply voltage sensing comparator.
The document describes the AN8060 and AN8060S, which are low drop type regulators designed with a built-in comparator to sense reduced voltage. This feature makes them suitable for battery operation scenarios where resetting the output voltage is required.
Key features include a bias current of –5µA at reset, a small input-output voltage difference (0.2V at 30mA), and an integrated low supply voltage sensing comparator. The device is available in 8-pin DIL Plastic Package and 8-pin SOP package.
| Supply voltage | -12 to +0.3 V |
|---|---|
| Power dissipation | 500 mW |
| Operating ambient temperature | -20 to +75 °C |
| Storage temperature | -55 to +125 °C |
The bias current at resetting is –5µA.
Yes, the device has a Low Supply Voltage sensing comparator built-in.
