The AN8072N is a multi-output power supply regulator designed by ON Semiconductor. It is most suitable for equipments which need multi supply voltage supply. The device has 2-ch 8V output, 2-ch 10V output and 1-ch 10V output, with low power consumption, overvoltage protection and output short protection.

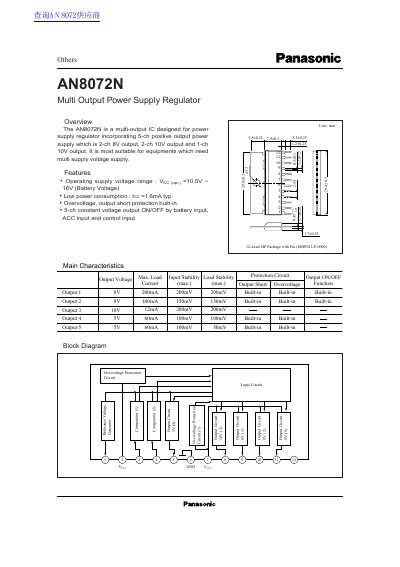

The Panasonic AN8072N is a multi-output integrated circuit designed for power supply regulation. It incorporates five positive output channels: two 8V outputs (FM and AM), one 10V output (Vvar), one 5V output (Vo), and another 5V output (CE). The device features built-in protection circuits for overvoltage and output shorting, as well as low power consumption with a typical supply current of 1.6mA.
| Typical Supply Current | 1.6mA |
|---|---|
| Output 1 Voltage | 8V |
| Output 4 Voltage | 5V |
| Output 5 Voltage | 5V |
| Package Type | 12-Lead SIP Package with Fin (HSIP012-P-0000) |
| Operating Ambient Temperature | -30~+75 °C |
Yes, it includes overvoltage and output short protection circuits.
The maximum power dissipation is 1200 mW when the ambient temperature is 75°C.
The typical supply current consumption is 1.6mA.
